Shelly Qubino Z-Wave Shutter

SKU: ALREZWE_W_SHUTTR

ZWave+ Security V2

Quickstart

This is a secure Window Control (endpoint aware) for Europe. To run this device please connect it to your mains power supply.
1. With the gateway application scan the QR code on the Device label and add the Security 2 (S2) Device Specific Key (DSK) to the Provisioning List in the gateway.
2. Connect the Device to a power supply.
3. Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave™ network.
4. Adding will be initiated automatically within a few seconds after connecting the Device to a power supply, and the Device will be added to a Z-Wave™ network automatically.
5. The blue LED will be blinking in Mode 2 during the adding process.
6. The load connected to O will be blinking 1s on/1s off/1s on/1s off if the Device is successfully added to a Z-Wave™ network.
7. The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave™ network.



Important safety information

Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer, distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. Use this equipment only for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment or batteries in a fire or near open heat sources.

What is Z-Wave?

Z-Wave is the international wireless protocol for communication in the Smart Home. This device is suited for use in the region mentioned in the Quickstart section.

Z-Wave ensures a reliable communication by reconfirming every message (two-way communication) and every mains powered node can act as a repeater for other nodes (meshed network) in case the receiver is not in direct wireless range of the transmitter.

This device and every other certified Z-Wave device can be used together with any other certified Z-Wave device regardless of brand and origin as long as both are suited for the same frequency range.

If a device supports secure communication it will communicate with other devices secure as long as this device provides the same or a higher level of security. Otherwise it will automatically turn into a lower level of security to maintain backward compatibility.

For more information about Z-Wave technology, devices, white papers etc. please refer to www.z-wave.info.

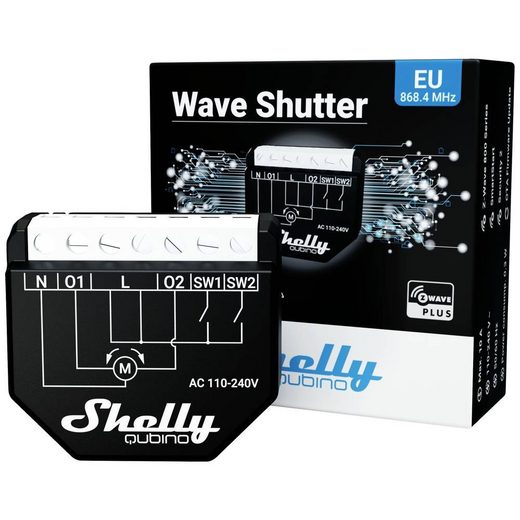

Product Description

With the Wave Shutter, remotely automate and control the position of shutters, blinds, windows, awnings, pool covers and other devices powered by bidirectional AC motors. Using Z-Wave, smart home products can seamlessly communicate with each other, regardless of their brand or interface, thanks to a centralized smart hub! Shelly Qubino devices work with the latest generation Z-Wave chip (S800), one of the world"s most popular standardized technologies for smart homes. Wave Shutter is retrofittable and designed to fit behind any switch or outlet, instantly turning it into a smart outlet. Once installed, you can plug it into your Z-Wave network (Z-Wave gateway required) and control connected devices from anywhere using your smartphone or tablet. Shelly Qubino devices work with over 4000 Z-Wave certified devices and gateways.

Prepare for Installation / Reset

Please read the user manual before installing the product.

In order to include (add) a Z-Wave device to a network it must be in factory default state. Please make sure to reset the device into factory default. You can do this by performing an Exclusion operation as described below in the manual. Every Z-Wave controller is able to perform this operation however it is recommended to use the primary controller of the previous network to make sure the very device is excluded properly from this network.

Reset to factory default

This device also allows to be reset without any involvement of a Z-Wave controller. This procedure should only be used when the primary controller is inoperable.

1. To enter the Setting mode, quickly press and hold the S button on the Device until the LED turns Solid blue.
2. Press the S button multiple times until the LED turns Solid red.
3. Press and hold (> 2s) S button on the Device until the red LED starts blinking in Mode 3. Releasing the S button will start the factory reset.
4. During factory reset, the LED will turn solid green for about 1s, then the blue and red LED will start blinking in Mode 3 for approx. 2s.
5. The blue LED will be blinking in Mode 1 if the Factory reset is successful.

Safety Warning for Mains Powered Devices

ATTENTION: only authorized technicians under consideration of the country-specific installation guidelines/norms may do works with mains power. Prior to the assembly of the product, the voltage network has to be switched off and ensured against re-switching.

Installation

The Device can control a bi-directional AC motor. It can be retrofitted into standard electrical wall boxes, behind the switches or other places with limited space.
⚠CAUTION! Danger of electrocution. Mounting/installation of the Device to the power grid has to be performed with caution, by a qualified electrician.
⚠CAUTION! Danger of electrocution. Every change in the connections has to be done after ensuring there is no voltage present at the Device terminals.
⚠CAUTION! Use the Device only with a power grid and appliances that comply with all applicable regulations. A short circuit in the power grid or any appliance connected to the Device may damage it.
⚠CAUTION! Do not connect the Device to appliances exceeding the given max. load!
⚠CAUTION! Do not shorten the antenna.
⚠RECOMMENDATION: Place the antenna as far away as possible from metal elements as they can cause signal interference.
⚠CAUTION! Connect the Device only in the way shown in these instructions. Any other method could cause damage and/or injury.
⚠CAUTION! Do not install the Device where it can get wet.
⚠CAUTION! Do not use the Device if it has been damaged!
⚠CAUTION! Do not attempt to service or repair the Device yourself!
⚠RECOMMENDATION: Connect the Device using solid single-core wires with increased insulation heat resistance not less than PVC T105°C (221°F).
⚠CAUTION! Before starting the mounting/installation of the Device, check that the breakers are turned off and there is no voltage on their terminals. This can be done with a phase tester or multimeter. When you are sure that there is no voltage, you can proceed to connecting the wires.
⚠CAUTION! Use only one phase AC circuit. Do not use mixed AC and DC circuits.

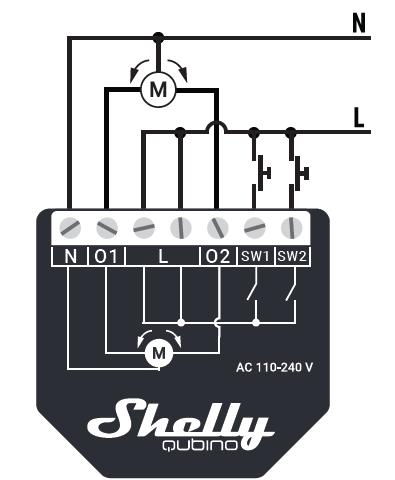

Connect both L terminals to the Live wire and the N terminal to the Neutral wire. Connect the common motor terminal/wire to the Neutral wire. Connect motor direction terminals/wires to the O1 and O2 terminals.* Connect the first switch/push-button to the SW1
terminal and the Live wire. Connect the second switch/push-button to the SW2 terminal and the Live wire. *The Device outputs can be reconfigured to match the required rotation direction.

Legend

Device terminals:
• N: Neutral terminal
• L: Live terminals (110–240 V AC)
• O1: Output terminal for motor UP (open)
• O2: Output terminal for motor DOWN (close)
• SW1: Input terminal for switch/push-button UP (open)
• SW2: Input terminal for switch/push-button DOWN (close)

⚠RECOMMENDATION: For inductive appliances that cause voltage spikes during switching on/off, such as electrical motors, fans, vacuum cleaners and similar ones, RC snubber (0.1 μF / 100 Ω / 1/2 W / 600 V AC) should be connected parallel to the appliance.
⚠CAUTION! Do not allow children to play with the push-buttons/switches connected to the Device. Keep the devices for remote control of Shelly Qubino (mobile phones, tablets, PCs) away from children.

Inclusion/Exclusion

On factory default the device does not belong to any Z-Wave network. The device needs to be added to an existing wireless network to communicate with the devices of this network. This process is called Inclusion.

Devices can also be removed from a network. This process is called Exclusion. Both processes are initiated by the primary controller of the Z-Wave network. This controller is turned into exclusion respective inclusion mode. Inclusion and Exclusion is then performed doing a special manual action right on the device.

Inclusion

1. Connect the Device to a power supply.
2. Check if the blue LED is blinking in Mode 1. If so, the Device is not added to a Z-Wave™ network.
3. Enable add/remove mode on the gateway.
4. To enter the setting mode, quickly press and hold the S button on the Device until the LED turns Solid blue.
5. Quickly release and then press and hold (> 2 s) the S button on the Device until the blue LED starts blinking in Mode 3. Releasing the S button will start the LEARN MODE.
6. The blue LED will be blinking in Mode 2 during the adding process.
7. The load connected to O will be blinking 1s on/1s off/1s on/1s off if the Device is successfully added to a Z-Wave™ network.
8. The green LED will be blinking in Mode 1 if the Device is successfully added to a Z-Wave™ network.

Exclusion

1. Connect the Device to a power supply.
2. Check if the green LED is blinking in Mode 1. If so, the Device is added to a Z-Wave™ network.
3. Enable add/remove mode on the gateway.
4. To enter the Setting mode, quickly press and hold the S button on the Device until the LED turns Solid blue.
5. Quickly release and then press and hold (> 2s) the S button on the Device until the blue LED starts blinking in Mode 3. Releasing the S button will start the LEARN MODE.
6. The blue LED will be blinking in Mode 2 during the removing process.
7. The load connected to O will be blinking 1s on/1s off/1s on/1s off if the Device is successfully removed from a Z-Wave™ network.
8. The blue LED will be blinking in Mode 1 if the Device is successfully removed from a Z-Wave™ network.

Product Usage

Calibration

Automatic calibration is a process during which the Device learns the position of the limit switches.
Note! For the correct position operation, the Device must perform a calibration procedure!
Note! The motor must be equipped with electronic or mechanical limit switches and the limit positions must be set correctly before calibration!
Note! The calibration is successful when the Device performs a complete cycle of movement: up, down, up, down to 50%.
Note! If the calibration is not executed, check that the limit switches are correctly set and that the wiring is done according to the instructions in the User Guide.

Automatic calibration with the push-button SW1:
Note! Calibration with the push-button SW1 is not time-limited and can be started anytime.
1. Move blind to the top (upper) position.
2. Press SW1 4 times in 3 seconds.
3. The Device will start calibration and complete 3 cycles: down, up, down to 50%.
4. Check the LED status to see if the calibration has been successful.

Automatic calibration with the S button:
Note! Calibration with the S button is not time-limited and can be started anytime.
1. Enter the setting mode by pressing the S button for less than0,5s (short press).
2. Keep pressing the S button until the calibration is selected, indicated by the yellow LED colour.
3. Start calibration by pressing the S button for more than 2 seconds.
4. The Device will start calibration and complete 3 cycles: down, up, down to 50%.
5. Check the LED status to see if the calibration has been successful.

Venetian Mode
Slats tilting position calibration (Venetian mode)
Parameter No. 71 set to 1. When enabling the “venetian blind” mode, position calibration for slats titling must be done. After that, the position and angle of the slats can be set. By default, the rotation time of slats is set to 1,5 s. This value can be changed with the Parameter No. 72.

1. Add (include) and perform the Device calibration process according to the ‘Shutter positioning calibration’ section.
2. Set the Parameter No. 71 to 1 “Venetian blinds”.
3. By default, the full rotation time is set to 1,5 s. If this time is too long (if the blind starts to move up or down after the slats full cycle), decrease this time with the Parameter No. 72. If this time is too short (if the slats do not turn for a full cycle), increase this time with the Parameter No. 72.
4. Repeat the 3rd step until the position of the slats is correct.

Operational Instructions

If the inputs are configured as push-buttons:
• Pressing the push-button when the blind is static, moves the blind in the corresponding direction until the endpoint is reached.
• Pressing the push-button for the same direction while the blind is moving, stops the blind.
• Pressing the push-button for the opposite direction while the blind is moving, reverses the blind movement until the endpoint is reached.

If the inputs are configured as switches:
• Turning the switch on moves the blind in the corresponding direction until the endpoint is reached.
• Turning the switch off stops the blind movement.
• If both switches are turned on, the Device respects the last engaged switch. Turning off the last engaged switch stops the blind movement, even if the other switch is still on.
• To move the blind in the opposite direction, the other switch has to be turned off and on again.

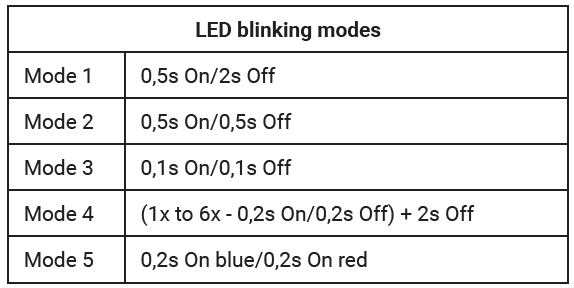

LED Signalization

Quick trouble shooting

Here are a few hints for network installation if things dont work as expected.

  1. Make sure a device is in factory reset state before including. In doubt exclude before include.
  2. If inclusion still fails, check if both devices use the same frequency.
  3. Remove all dead devices from associations. Otherwise you will see severe delays.
  4. Never use sleeping battery devices without a central controller.
  5. Dont poll FLIRS devices.
  6. Make sure to have enough mains powered device to benefit from the meshing

Association - one device controls an other device

Z-Wave devices control other Z-Wave devices. The relationship between one device controlling another device is called association. In order to control a different device, the controlling device needs to maintain a list of devices that will receive controlling commands. These lists are called association groups and they are always related to certain events (e.g. button pressed, sensor triggers, ...). In case the event happens all devices stored in the respective association group will receive the same wireless command wireless command, typically a 'Basic Set' Command.

Association Groups:

Group Number Maximum Nodes Description
1 9 Lifeline
2 9 SW1 Shuttermode SWITCH_MULTILEVEL
3 9 SW1 Venitian Mode SWITCH_MULTILEVEL
4 9 BASIC_SET : set On / Off state at the associated device
5 9 BASIC_SET : set On / Off state at the associated device
6 9 SW2 Shuttermode SWITCH_MULTILEVEL
7 9 SW2 Venitian Mode SWITCH_MULTILEVEL

Configuration Parameters

Z-Wave products are supposed to work out of the box after inclusion, however certain configuration can adapt the function better to user needs or unlock further enhanced features.

IMPORTANT: Controllers may only allow configuring signed values. In order to set values in the range 128 ... 255 the value sent in the application shall be the desired value minus 256. For example: To set a parameter to 200 it may be needed to set a value of 200 minus 256 = minus 56. In case of a two byte value the same logic applies: Values greater than 32768 may needed to be given as negative values too.

Parameter 1: Push-button (momentary) / bistable (toggle switch) selection

This parameter defines how the Device should treat the switch (which type) connected to the SW (SW1) terminal.
Size: 1 Byte, Default Value: 2

Setting Description
0 momentary switch (push button)
1 toggle switch (contact closed - ON / contact opened - OFF)
2 toggle switch (Device changes status when switch changes status)

Parameter 3: Inputs orientation

This parameter allows to reverse the operation of switches connected to SW1 and SW2 inputs without changing the wiring.
Size: 1 Byte, Default Value: 0

Setting Description
0 default (SW1 - O1, I2 - O2)
1 reversed (SW1 - O2, I2 - O1)

Parameter 5: Output orientation

This parameter allows to reverse the operation of switches connected to SW1 and SW2 inputs without changing the wiring.
Size: 1 Byte, Default Value: 0

Setting Description
0 default (O1 - UP, O2 - DOWN)
1 reversed (O1 - DOWN, O2 - UP)

Parameter 40: Power Consumption Reporting

Choose by how much the power (W) consumption needs to increase or decrease to be reported. Values correspond to percentages, so if 50 is set (by default), the Device will report any power consumption changes of 50 % or more, compared to the last reading.
Size: 1 Byte, Default Value: 50

Setting Description
0 Power consumption reporting disabled
1 - 100 % Power consumption reporting enabled.

Parameter 71: Operating modes

Choose between the two operating modes. In shutter mode, you can select up/down/stop. In venetian mode, an additional widget/endpoint is displayed in the UI interface, which you can use to control the tilt position of the slats.
Size: 1 Byte, Default Value: 0

Setting Description
0 Shutter mode
1 Venetian mode with (up/down and slats rotation)
2 Manual time set (No end switches)

Parameter 72: Venetian blind slats turning time

Set the time required for the slats to make a full turn (180 degrees).
Size: 2 Byte, Default Value: 150

Setting Description
0 turning time disabled
1 - 32767 0.01 seconds – 327.67 seconds

Parameter 73: Slats position after moving

This parameter is used to enable/disable the slats to return to the previously set position, after being activated via the gateway, push-button operation or when the lower limit switch is reached.
Size: 1 Byte, Default Value: 1

Setting Description
0 disable
1 enable

Parameter 76: Motor operation detection

Define the power consumption threshold at the end positions. Based on this value, the Device will know that the shutters reached the limit switches.
Size: 1 Byte, Default Value: 1

Setting Description
0 Disabled: reaching a limit switch will not be detected
1 Auto power calibration
2 - 255 (2-255W) - report interval

Parameter 78: Forced shutter calibration

By setting this parameter to value 1 the Device will start executing force calibration procedure. The parameter also reports the calibration status by sending the get parameter value command.
Size: 1 Byte, Default Value: 3

Setting Description
1 start calibration
2 device is calibrated (read only)
3 device is not calibrated (read only)
4 calibration error (read only)

Parameter 80: Motor stop delay after limit switch detection

This parameter defines the delay time for the motor to turn off, after reaching the limit switch.
Size: 1 Byte, Default Value: 10

Setting Description
0 - 255 (0-25.5s) - time

Parameter 85: Power consumption max delay time

Define the maximum time before the power consumption of the motor is read from the Device, after one of the relays is switched on. If there is no power consumption during the set time (motor is not connected, damaged or requires longer time to start, motor is at the end position), the relay will switch off. This time is defined by entering it manually.
Size: 1 Byte, Default Value: 30

Setting Description
0 time is set automatically
3 - 50 0.3seconds – 5seconds (100ms resolution)

Parameter 91: Max. Motor moving time

When the shutter is not calibrated (or the motor is not equipped with a limit switch), this parameter defines the movement time of the motor.
Size: 2 Byte, Default Value: 120

Setting Description
1 - 32000 seconds
65000 unlimited time

Technical Data

Dimensions 42 x 37 x 16 mm
Weight 29 gr
Hardware Platform EFR32ZG23
EAN 3800235269008
IP Class IP 20
Voltage 230V
Load 2 x 10A
Device Type Window Covering Endpoint Aware
Generic Device Class Multilevel Switch
Specific Device Class Motor Control Device (B)
Firmware Version 12.13
Z-Wave Version 07.13
Z-Wave Product Id 0x0460.0x0003.0x0082
Frequency Europe - 868,4 Mhz
Maximum transmission power 5 mW

Supported Command Classes

  • Ss Basic
  • Transport Service
  • Zwaveplus Info
  • Supervision
  • Security 2
  • Application Status
  • Switch Multilevel
  • Meter
  • Association Grp Info
  • Device Reset Locally
  • Multi Channel
  • Configuration
  • Alarm
  • Manufacturer Specific
  • Powerlevel
  • Firmware Update Md
  • Association
  • Version
  • Indicator
  • Multi Channel Association

    •

Explanation of Z-Wave specific terms

  • Controller — is a Z-Wave device with capabilities to manage the network. Controllers are typically Gateways,Remote Controls or battery operated wall controllers.
  • Slave — is a Z-Wave device without capabilities to manage the network. Slaves can be sensors, actuators and even remote controls.
  • Primary Controller — is the central organizer of the network. It must be a controller. There can be only one primary controller in a Z-Wave network.
  • Inclusion — is the process of adding new Z-Wave devices into a network.
  • Exclusion — is the process of removing Z-Wave devices from the network.
  • Association — is a control relationship between a controlling device and a controlled device.
  • Wakeup Notification — is a special wireless message issued by a Z-Wave device to announces that is able to communicate.
  • Node Information Frame — is a special wireless message issued by a Z-Wave device to announce its capabilities and functions.
