Danalock Universal Module Version 3
SKU: POLEUMV3
Quickstart
This is a
Important safety information
Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer, distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. Use this equipment only for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment or batteries in a fire or near open heat sources.What is Z-Wave?
Z-Wave is the international wireless protocol for communication in the Smart Home. This device is suited for use in the region mentioned in the Quickstart section.
Z-Wave ensures a reliable communication by reconfirming every message (two-way communication) and every mains powered node can act as a repeater for other nodes (meshed network) in case the receiver is not in direct wireless range of the transmitter.
This device and every other certified Z-Wave device can be used together with any other certified Z-Wave device regardless of brand and origin as long as both are suited for the same frequency range.
If a device supports secure communication it will communicate with other devices secure as long as this device provides the same or a higher level of security. Otherwise it will automatically turn into a lower level of security to maintain backward compatibility.
For more information about Z-Wave technology, devices, white papers etc. please refer to www.z-wave.info.
Product Description

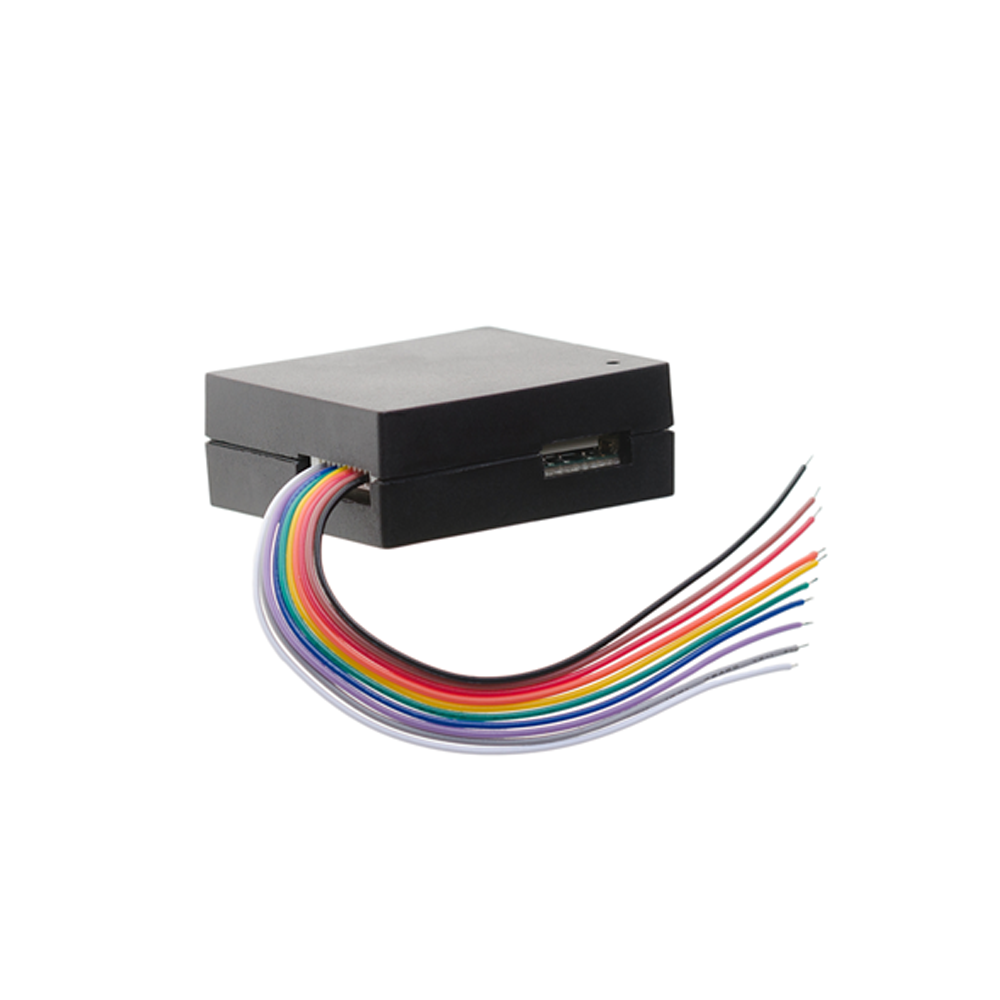

The UMV3 Z-Wave is a door lock device used to control door lock based components like garage door controls, door strikes, electromechanical or magnetic locks, windows or gates. These devices may be controlled by one of UMV3`s relay outputs. UMV3 supports the Z-Wave Plus standard, which is compatible with earlier versions of Z-Wave. The UMV3 is battery supplied and therefore it is a FLIRS Frequently Listening Routing Slave which conserves battery. The UMV3 is a security enabled Z-Wave Plus Product. A security enabled Z-Wave controller must be used. The UMV3 supports the standard security S0 and the new security standard S2. This manual covers all versions of UMV3 Z-Wave.
Prepare for Installation / Reset
Please read the user manual before installing the product.
In order to include (add) a Z-Wave device to a network it must be in factory default state. Please make sure to reset the device into factory default. You can do this by performing an Exclusion operation as described below in the manual. Every Z-Wave controller is able to perform this operation however it is recommended to use the primary controller of the previous network to make sure the very device is excluded properly from this network.
Reset to factory default
This device also allows to be reset without any involvement of a Z-Wave controller. This procedure should only be used when the primary controller is inoperable.
The UMV3 can be set to factory settings by pushing the switch 10 times.
Installation
Wiring
Inclusion/Exclusion
On factory default the device does not belong to any Z-Wave network. The device needs to be added to an existing wireless network to communicate with the devices of this network. This process is called Inclusion.
Devices can also be removed from a network. This process is called Exclusion. Both processes are initiated by the primary controller of the Z-Wave network. This controller is turned into exclusion respective inclusion mode. Inclusion and Exclusion is then performed doing a special manual action right on the device.
Inclusion
1. Set the controller in inclusion mode
2. Push the switch once.
3. Wait 5 seconds.
Exclusion
1. Set the controller in exclusion mode2. Push the switch once.
3. Wait 5 seconds.
Product Usage

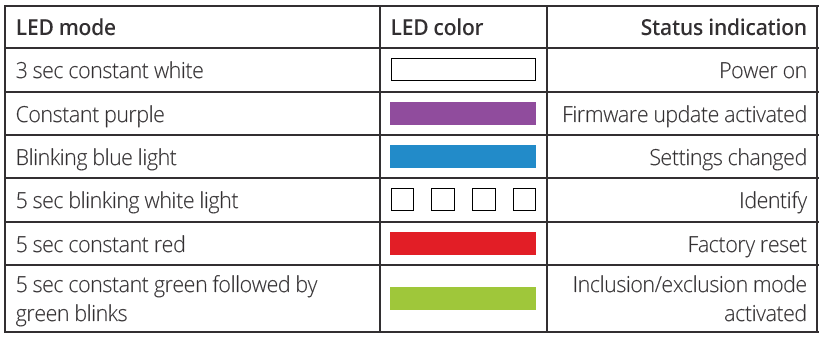

Quick trouble shooting
Here are a few hints for network installation if things dont work as expected.
- Make sure a device is in factory reset state before including. In doubt exclude before include.
- If inclusion still fails, check if both devices use the same frequency.
- Remove all dead devices from associations. Otherwise you will see severe delays.
- Never use sleeping battery devices without a central controller.
- Dont poll FLIRS devices.
- Make sure to have enough mains powered device to benefit from the meshing
Association - one device controls an other device
Z-Wave devices control other Z-Wave devices. The relationship between one device controlling another device is called association. In order to control a different device, the controlling device needs to maintain a list of devices that will receive controlling commands. These lists are called association groups and they are always related to certain events (e.g. button pressed, sensor triggers, ...). In case the event happens all devices stored in the respective association group will receive the same wireless command wireless command, typically a 'Basic Set' Command.
Association Groups:
| Group Number | Maximum Nodes | Description |
|---|---|---|
| 1 | 1 | Z-Wave Plus Lifeline |
Configuration Parameters
Z-Wave products are supposed to work out of the box after inclusion, however certain configuration can adapt the function better to user needs or unlock further enhanced features.
IMPORTANT: Controllers may only allow configuring signed values. In order to set values in the range 128 ... 255 the value sent in the application shall be the desired value minus 256. For example: To set a parameter to 200 it may be needed to set a value of 200 minus 256 = minus 56. In case of a two byte value the same logic applies: Values greater than 32768 may needed to be given as negative values too.
Parameter 1: Relay 1 Pulse length (ms)
Time the relay is on in milliseconds. Size: 4 Byte, Default Value: 5000
| Setting | Description |
|---|---|
| 0 - 2147483647 | Time the relay is on in milliseconds. |
Parameter 2: Relay 1 Delay length (ms)
Time before the relay is activated. Size: 4 Byte, Default Value: 0
| Setting | Description |
|---|---|
| 0 - 2147483647 | Time before the relay is activated. |
Parameter 3: Relay 2 Pulse length (ms)
Time the relay is on in milliseconds. Size: 4 Byte, Default Value: 5000
| Setting | Description |
|---|---|
| 0 - 2147483647 | Time the relay is on in milliseconds. |
Parameter 4: Relay 2 Delay length (ms)
Time before the relay is activated. Size: 4 Byte, Default Value: 0
| Setting | Description |
|---|---|
| 0 - 2147483647 | Time before the relay is activated. |
Parameter 5: Relay 3 Pulse length (ms)
Time the relay is on in milliseconds. Size: 4 Byte, Default Value: 5000
| Setting | Description |
|---|---|
| 0 - 2147483647 | Time the relay is on in milliseconds. |
Parameter 6: Relay 3 Delay length (ms)
Time before the relay is activated. Size: 4 Byte, Default Value: 0
| Setting | Description |
|---|---|
| 0 - 2147483647 | Time before the relay is activated. |
Parameter 7: Disable battery alarm
Disable battery alarm0 = Battery Alarm enable,1 = Battery Alarm disable Size: 1 Byte, Default Value: 0
| Setting | Description |
|---|---|
| 0 | Battery Alarm enable |
| 1 | Battery Alarm disable |
Parameter 8: Battery Sample Interval Seconds
Battery Sample Interval Seconds Size: 4 Byte, Default Value: 3600
| Setting | Description |
|---|---|
| 0 | Sample off |
| 1 - 2147483647 | Seconds between samples |
Parameter 9: Battery Milli Volt Level Threshold Maximum
Maximum battery alarm level in mV. Size: 4 Byte, Default Value: 12100
| Setting | Description |
|---|---|
| 0 - 2147483647 | Maximum battery alarm level in mV. |
Parameter 10: Battery Milli Volt Level Threshold Minimum
Minimum battery alarm level in mV. Size: 4 Byte, Default Value: 11600
| Setting | Description |
|---|---|
| 0 - 2147483647 | Minimum battery alarm level in mV. |
Parameter 11: Ble temporary allowtimer - seconds
Allow Bluetooth to be on for a time in seconds Size: 4 Byte, Default Value: 0
| Setting | Description |
|---|---|
| 0 | Off |
| 1 - 2147483647 | Seconds Bluetooth Smart is on. |
Parameter 12: BLE Always allowed
0 = Not always allowed. 1= Always allowed. Size: 1 Byte, Default Value: 0
| Setting | Description |
|---|---|
| 0 | Not always allowed |
| 1 | Always allowed |
Technical Data
| Dimensions | 37 x 40 x 15 mm |
| Weight | 17 gr |
| Hardware Platform | ZM5202 |
| EAN | 5712560000554 |
| IP Class | IP 20 |
| Voltage | 12 - 24 V |
| Device Type | Door Lock - Keypad |
| Network Operation | Listening Sleeping Slave |
| Z-Wave Version | 6.71.01 |
| Certification ID | ZC10-18026026 |
| Z-Wave Product Id | 0x010E.0x0009.0x0002 |
| Supported Notification Types | Access Control |
| Firmware Updatable | Updatable by Consumer by RF |
| Frequency | Europe - 868,4 Mhz |
| Maximum transmission power | 5 mW |
Supported Command Classes
- Association Grp Info
- Association V2
- Battery
- Configuration
- Device Reset Locally
- Door Lock V2
- Firmware Update Md V4
- Manufacturer Specific V2
- Notification V8
- Powerlevel
- Security
- Security 2
- Supervision
- Transport Service V2
- Version V2
- Zwaveplus Info V2
