Popp

Mold Detector

SKU: POPE700281

ZWave+

Quickstart

This is a Notification Sensor for XXXQFrequencyName. To run this device please insert fresh 1 * CR2477 batteries. To run this device please make sure the internal battery is fully charged. Tripple click the central button to include the device.



Important safety information

Please read this manual carefully. Failure to follow the recommendations in this manual may be dangerous or may violate the law. The manufacturer, importer, distributor and seller shall not be liable for any loss or damage resulting from failure to comply with the instructions in this manual or any other material. Use this equipment only for its intended purpose. Follow the disposal instructions. Do not dispose of electronic equipment or batteries in a fire or near open heat sources.

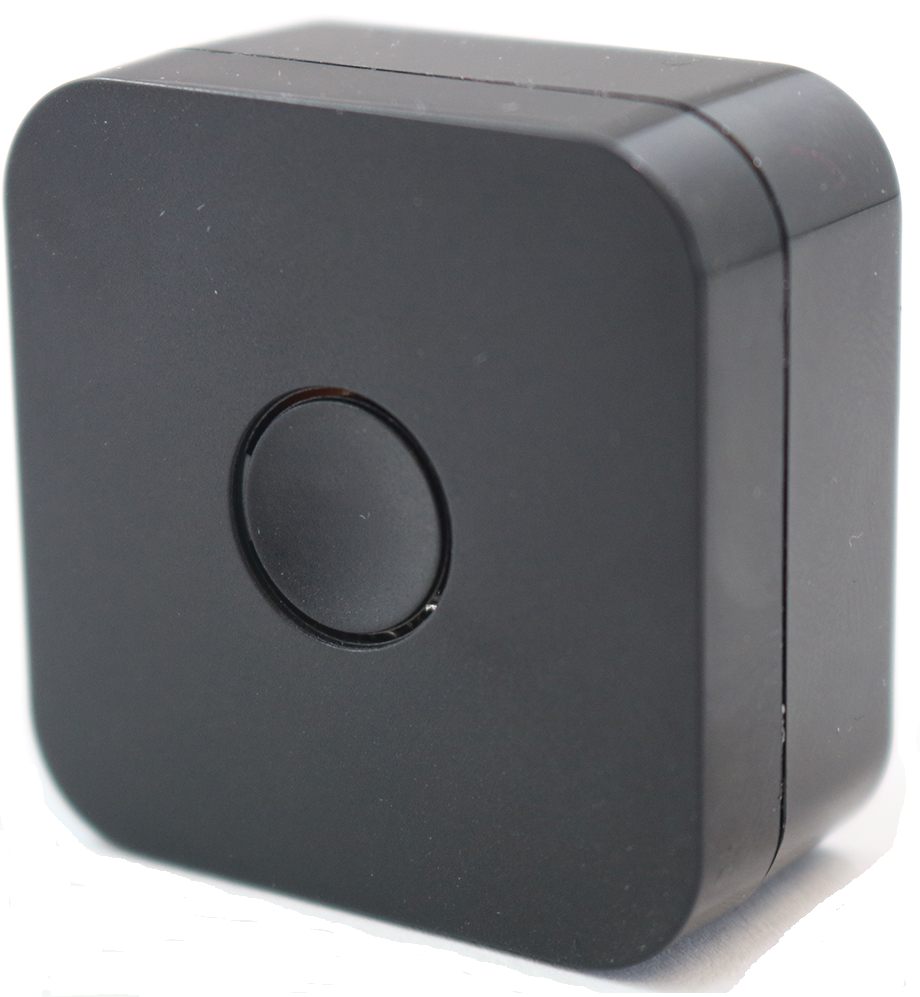

Product Description

This small devices monitors the air quality and warns if there is a danger of mold in the room. In order to detect mold-supporting conditions the temperature, the relative humidity, the air pressue and the airs dew point is measured and also reported. In case of mold-danger the device can directly control other devices (e.g. heating or ventilation) and it reports the event ot a central controller using Z-Wave notifications.
The device also allows setting thresholds for temperature and humidity to take action in case the monitored values fall outside these values.  This can be used to establish control loops for temperature and humidity. Updated of measured values are sent unsolicited in case thee is a change. This prevents polling and frequent wakeup and therefore extends battery life.

Installation

Just place the device on any flat surface. Please keep in mind that the temperature may be different on different locations inside the room. If placed too closed to the heating both temperature, humidity and dew point values may be wrong. The device is IP 20 rated. This means that is must not be exposed to direct water (rain). It is safe to use the device in a humid environment such as bath room or dedicted washing facility.

Product Usage

Once the device is powered up it will start monitoring the air parameters and warn of mold if included to a Z-Wave controller. All air parameters are measured every 4 minutes. Pushing the button will force an immediate measurement and the LEDs will indicate the danger of mold:

  • green: no danger of mold in the room
  • red: danger of mold, oen the windows to lower the humidity
The device contains four sensors with the following accuracy measures:
  • Humidity: +/- 3 % on relative humidity, +/-1 % hysteresis
  • Air Pressure: within 300... 1100 hPA and 0...65 grd C +/- 1 kPa
  • Temperature: 0 ... 65 grd C +/- 1 Kelvin
  • Dew Point: 0 ... 65 grd C +/- 1 Kelvin (calculated from other sensor values)
Reset to factory default Keep the button pressed for 10 seconds. After 5 seconds the red LED will start blinking.
Inclusion Tripple Click the button
Exclusion Tripple Click the button
NIF Single Click the Button on the top side
Wakeup A single click on the butto will wakeup the device.
Protection XXXProtection
FirmwareUpdate XXXFirmwareUpdate
SetAssociation XXXSetAssociation

Association Groups:

Group Number Maximum Nodes Description
1 10 Lifeline
2 10 Temperature High Trigger
3 10 Temperature Low Trigger
4 10 Humidity High Trigger
5 10 Humidity Low Trigger
6 10 Trigger device in case of mold-supporting air condition. You may want to include a heating or ventilation device for diretc control.

Configuration Parameters

Parameter 1: Minimum Temperature change to report

This value defines the minimum change of temperature to cause an unsolicited report of temperature to the central controller using Lifeline
Size: 1 Byte, Default Value: 10

Setting Description
0 - 100 1/10 seconds

Parameter 2: Minimum humidity change to report

This value defines the minimum change of humidity to cause an unsolicited report of humidity to the central controller using Lifeline
Size: 1 Byte, Default Value: 5

Setting Description
0 - 20 %

Parameter 3: Minimum Pressure change to report

This value defines the minimum change of air pressure to cause an unsolicited report of air pressure to the central controller using Lifeline
Size: 1 Byte, Default Value: 10

Setting Description
0 - 50 kPa

Parameter 4: Periodic Reports

This parameter defines the time interval to send an unsolicited report
Size: 2 Byte, Default Value: 3600

Setting Description
0 - 65535 Seconds

Parameter 5: Temperature Upper Watermark value

This parameter defines a temperature. If the measured temperature surpasses this watermark a BASIC command is sent into Association Group 2
Size: 2 Byte, Default Value: 0

Setting Description
1 - 1000 degree
0 disabled

Parameter 6: Temperature Lower Watermark value

This parameter defines a temperature. If the measured temperature dropps below this watermark a BASIC command is sent into Association Group 3
Size: 2 Byte, Default Value:

Setting Description
-200 - 1000 1/10 degree
0 disabled

Parameter 7: Humidity Upper Watermark value

This parameter defines a relative humidity. If the measured relative humidity surpasses this watermark a BASIC command is sent into Association Group 4
Size: 1 Byte, Default Value: 0

Setting Description
10 - 100 %
0 disabled

Parameter 8: Humidity Lower Watermark value

This parameter defines a relative humidity. If the measured temperature dropps below this relative humidity a BASIC command is sent into Association Group 5
Size: 1 Byte, Default Value:

Setting Description
0 - 90 %
0 disabled

Parameter 9: Low Temperature Trigger BASIC Set Command Value

This defines what BASIC command shall be sent out into association group 3
Size: 1 Byte, Default Value: 255

Setting Description
0 - 255 Value

Parameter 10: High Temperature Trigger BASIC Set Command Value

This defines what BASIC command shall be sent out into association group 2
Size: 1 Byte, Default Value: 0

Setting Description
0 - 255 Value

Parameter 10: Low Humidity Trigger BASIC Set Command Value

This defines what BASIC command shall be sent out into association group 5
Size: 1 Byte, Default Value: 255

Setting Description
0 - 255 Value

Parameter 12: High Humidity Trigger BASIC Set Command Value

This defines what BASIC command shall be sent out into association group 4
Size: 1 Byte, Default Value: 0

Setting Description
0 - 255 Value

Technical Data

Dimensions 34x34x16 mm
Weight 80 gr
Hardware Platform ZM5101
EAN 4251295700281
IP Class IP 20
Battery Type 1 * CR2477
Device Type Notification Sensor
Generic Device Class Binary Sensor
Specific Device Class Notification Sensor
Network Operation Sleeping Reporting Sensor
Firmware Version 00.10
Z-Wave Version 04.05
Z-Wave Product Id 0154.000d.0004
Frequency Europe - 868,4 Mhz
Maximum transmission power 5 mW
EuropeNotification Sensor
